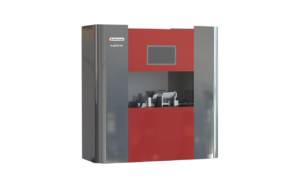

Metrix OD
For the automated control of outer diameters of shafts, tubes, and other cylindrical objects.
For Precise Outer Diameter control
METRIX OD controls outer diameters with micrometer level accuracy.
It uses tactile sensors for many measurement points or contactless pneumatic sensors.
Applications
METRIX OD controls the outer diameter of any kind of cylinders ranging from consumer goods (cigarettes, coffee capsules) to medical implants (bone replacement parts) and engine parts (shaft, axis).
-
ACCURATE AND PRECISE DIAMETER MEASUREMENTS
down to micrometers level or better, and low R&R gage
-
FAST AND EASY CONTROL
quick testing (within seconds), independent of the operator’s skills.
-
ULTRA HIGH PRECISION
with contact (tactile) transducers, also allowing for more measurement points over a smaller area
-
MATERIAL-FRIENDLY CONTROL
with contactless pneumatic sensors, that can also be used for online continuous control.
-
UNATTENDED OPERATION
with automation to save operator time for more value-added tasks
